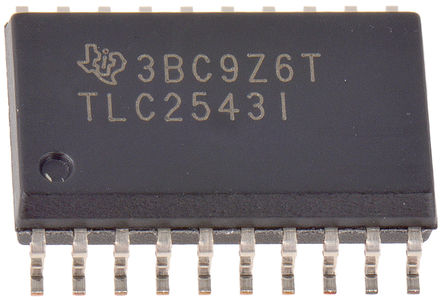

TLC2543IDW -

制造商：

TEXAS INSTRUMENTS TEXAS INSTRUMENTS

制造商产品编号：

TLC2543IDW

仓库库存编号：

1564976

技术数据表：

(EN)

The TLC2543IDW is a 12-bit switched-capacitor successive-approximation Analog-to-digital Converter (ADC) with three control inputs, the input-output clock and the address input (DATA INPUT)]. It is designed for communication with the serial port of a host processor or peripheral through a serial 3-state output. The device allows high-speed data transfers from the host. In addition to the high-speed converter and versatile control capability, the device has an on-chip 14-channel multiplexer that can select any one of 11 inputs or any one of three internal self-test voltages. At the end of conversion, the end-of-conversion (EOC) output goes high to indicate that conversion is complete. The converter incorporated in the device features differential high-impedance reference inputs that facilitate ratiometric conversion, scaling and isolation of analog circuitry from logic and supply noise. A switched-capacitor design allows low-error conversion over the full operating temperature range.

• Sample-and-hold function is automatic
• 3 Built-in self-test modes
• On-chip system clock
• End-of-conversion (EOC) output
• Programmable power down
• Programmable output data length
• Green product and no Sb/Br
