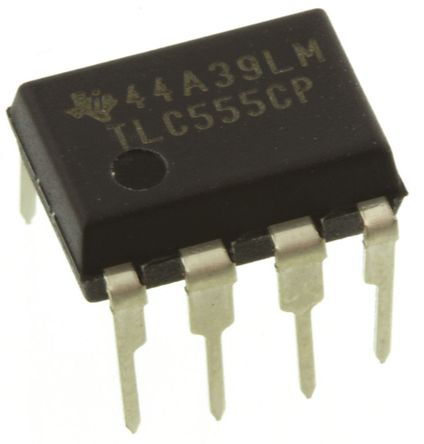

The TLC555CP is a monolithic timing circuit fabricated using the TI LinCMOS? process. The timer is fully compatible with CMOS, TTL, and MOS logic and operates at frequencies up to 2MHz. Because of its high input impedance, this device uses smaller timing capacitors than those used by the NE555. As a result, more accurate time delays and oscillations are possible. Power consumption is low across the full range of power supply voltage.
- Very low power cConsumption
- Capable of operation in a stable mode
- CMOS output capable of swinging rail to rail
- High output current capability
- Output fully compatible with CMOS, TTL, and MOS
- Low supply current reduces spikes during output transitions
- Single supply operation from 2 V to 15 V
- ESD protection exceeds 2000V per MIL-STD-883C, Method 3015.2
