The TMDSEMU560V2STM-U is an Blackhawk XDS560v2 system trace USB emulator. This JTAG emulator supports a USB connection to the host computer running the 32bit and 64bit versions of Microsoft Windows and Linux. The XDS560v2 system trace emulator is the latest in the XDS560 series of high performance debug test controllers (emulators) for processors. The XDS560v2 system trace supports both traditional IEEE 1149.1 (JTAG) emulation and the recently ratified IEEE 1149.7. The XDS560v2 system trace emulator features a standard MIPI 60pin HSPT header. This 60pin MIPI HSPT header allows the user to either connect to a 60pin MIPI HSPT target connector, or attach one of three included modular target configuration adapters to mate with any one for the following JTAG connectors, 14pin compact 20pin and 20pin ARM. Target board JTAG interface levels of 1.2V to 4.1V are supported with this emulator.

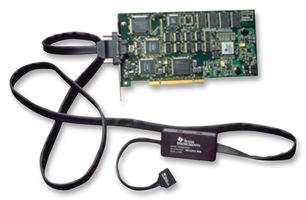

- PCI bus based emulator board
- Support for HS-RTDX enabled devices
- 0.5V to 5V operating voltage range
- 500KHz to 35MHz programmable TCK
- All output target signals are Hi Z when connected or powered on
- All pod signals are ESD protected
- Hardware detection of power losses and cable disconnects
- Overall cable/pod length of 6ft with the pod dimensions of 38mm x 75mm x 10mm
