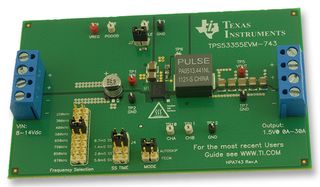

The TPS53355EVM-743 is an evaluation module allows users to evaluate the TPS53355. The TPS53355 is a D-CAP mode, 30A synchronous buck converter with integrated MOSFETs. It provides a fixed 1.5V output at up to 30A from a 12V input bus. The evaluation module is designed to use a regulated 12V bus to produce a regulated 1.5V output at up to 30A of load current. The evaluation module is designed to demonstrate the TPS53355 in a typical, low voltage application while providing a number of test points to evaluate the performance of the TPS53355.
- 30A dc, steady state output current
- Supports prebias output voltage start up
- J5 for selectable switching frequency setting
- J4 for selectable soft start time
- J2 for enable function
- J6 for auto skip and forced CCM selection
- Convenient test points for probing critical waveforms
