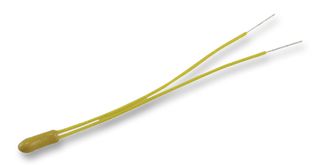

The NTCLE300E3xxxSB series from Vishay are radial leaded NTC thermistors. These NTC thermistors consist of a mini-chip soldered between two insulated (LE300) or non-insulated (LE201) nickel leads and coated with a solid ochre epoxy lacquer. Typical applications include temperature measurement and sensing and control applications.
- Accuracy of 0.5°C between 0°C and 50°C
- Small diameter
- High stability over a long life
- Long and flexible leads for special mounting or assembly requirements
- 3Kohm, 5Kohm and 10Kohm resistance values at 25°C available
- Beta value (B25/85value) is 3977K
- Operating temperature range from -40°C to 125°C
- Maximum power dissipation of 100mW
传感与仪器, 工业, 消费电子产品, 便携式器材, 车用
