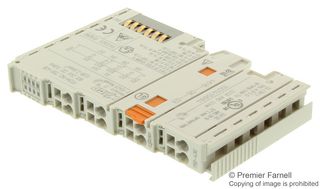

The 750-430 from Wago is a light gray colour, 8 channel digital input module with high side switching and 1-conductor connection. It receives control signals from digital field devices (sensors, transmitters, switches or proximity switches). Each input module has a noise rejection filter and filter is available with different time constants. Field and system levels are electrically isolated. This input module is approved by UL 508, ANSI/ISA 12.12.01 and ATEX/IECEx standards.
Voltage rating of 24VDC via power jumper contacts (-25% to 30%)
3.0ms input filter
Internal current consumption of 17mA
Signal voltage (0) of -3VDC to 5VDC and signal voltage (1) of 15VDC to 30VDC
Typical input current of 2.8mA
CE?conformity marking?
IP20?degree of protection?
CAGE CLAMP connection technology and 35mm DIN rail mounting
