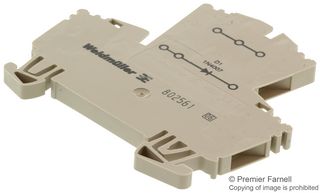

The 8025610000 is a Component Terminal Block with screw connection, diode for screwable cross section and 2.5mm2 wire cross section area. M2.5 clamping screw and 10mm stripping length. Dark beige colour, TS 35 rail mount and snap-on mounting. The WDK 2.5 1D terminal block accepts 26AWG minimum to 12AWG maximum wire size. Hardened steel for mechanical strength and high-quality tinned copper for optimum conductivity. All materials have been tested to current environment guidelines. The W-Series offers solutions for all standard electrical functions. It brings considerable time savings compared to all other screw terminals on the market. Thanks to the patented design of Weidmüller's W-series screw connection technology it is possible for two conductors with the same cross-section to be connected in one and the same clamping yoke without difficulty.
Simple operation - Can be clipped to or removed from the terminal rail in either direction
Thermally stable up to 120°C
Phosphorous- or halogen-free
Maintenance-free contacts
Highest contact force of all connection systems
Electric shock protection with connected conductors, even when cross-connected
