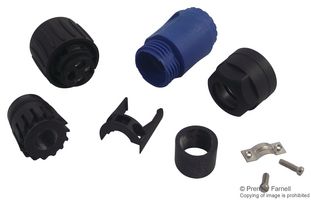

The C016 20D003 110 10 from Amphenol is an ecomate circular female cable connector with 3 + PE contacts. The ecomate series provide easy operation, reduced dimensions, robust design, quick and easy assembly. This connector's main area of application is in the field of plant construction and machine building. It is used for measuring and controlling applications as well as for power supply technology. This ergonomically designed connectors are approved by UL E63093, CSA 48932, VDE 1781/1780, SEV 00.0394 standards and designed for safe handling.
Silver plated contacts and screw termination
Cable diameter from 6mm to 10mm
Rated voltage of 400V according to DIN EN 60664-1/IEC 60664-1 standard
Contact resistance is less than or equal to 5mohm according to DIN EN 60512-2/IEC 60512-2 (test 2a)
Current carrying capacity of 16A at 55°C according to DIN EN 60512-3/IEC 60512-2 (test 5b)
Operating temperature range from -40°C to 100°C
IP67/IP65?degree of protection in accordance with DIN EN 60529/IEC 60529 standard
Blue colour?polyamide (PA6/PA6.6)?housing
Maximum wire gauge?of 2.5mm2
Strain relief with cable retention and clamping ring
