C016 20H003 110 10 -

圆形连接器, Ecomate C016系列, 插头, 3 触点, 公, 螺丝, 电缆安装

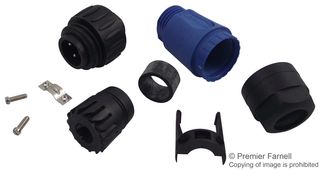

AMPHENOL SINE/TUCHEL C016 20H003 110 10
声明:图片仅供参考,请以实物为准!
制造商产品编号:
C016 20H003 110 10
仓库库存编号:
1188973
技术数据表:
(EN)
订购热线: 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于产品数据库庞大,部分产品信息可能未能及时更新,下单前请与销售人员确认好实时在库数量,谢谢合作!

C016 20H003 110 10产品概述

The C016 20H003 110 10 from Amphenol is an ecomate circular male cable connector with 3 + PE contacts. The ecomate series provide easy operation, reduced dimensions, robust design, quick and easy assembly. This connector's main area of application is in the field of plant construction and machine building. It is used for measuring and controlling applications as well as for power supply technology. This ergonomically designed connectors are approved by UL E63093, CSA 48932, VDE 1781/1780, SEV 00.0394 standards and designed for safe handling.
  • Silver plated contacts and screw termination
  • Cable diameter from 6mm to 10mm
  • Rated voltage of 400V according to DIN EN 60664-1/IEC 60664-1 standard
  • Contact resistance is less than or equal to 5mohm according to DIN EN 60512-2/IEC 60512-2 (test 2a)
  • Current carrying capacity of 16A at 55°C according to DIN EN 60512-3/IEC 60512-2 (test 5b)
  • Operating temperature range from -40°C to 100°C
  • IP67/IP65?degree of protection in accordance with DIN EN 60529/IEC 60529 standard
  • Blue colour?polyamide (PA6/PA6.6)?housing
  • Maximum wire gauge?of 2.5mm2
  • Strain relief with cable retention and clamping ring

工业

C016 20H003 110 10产品信息

  产品范围  Ecomate C016系列
  触点数  3触点
  连接器主体材料  尼龙(聚酰胺)主体
  触点材料  -
关键词
电话:400-900-3095
QQ:800152669

C016 20H003 110 10产地与重量

原产地:
Germany

进行最后一道重要生产流程所在的国家

RoHS 合规:
税则号:
85366990
重量(千克):
.041
