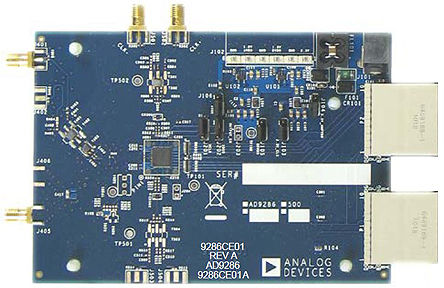

The AD9286-500EBZ is an evaluation board for 8bit, 500MSPS, 1.8V ADC AD9286. The AD9286 is an 8bit, monolithic sampling, analog to digital converter (ADC) that supports interleaved operation and is optimized for low cost, low power, and ease of use. Each ADC operates at up to a 250MSPS conversion rate with outstanding dynamic performance. The AD9286 takes a single sample clock and, with an on chip clock divider, time interleaves the two ADC cores (each running at one half the clock frequency) to achieve the rated 500MSPS. By using the SPI, the user can accurately adjust the timing of the sampling edge per ADC to minimize the image spur energy. The ADC requires a single 1.8V supply and an encode clock for full performance operation. No external reference components are required for many applications. The digital outputs are LVDS compatible.
- AD9286-500EBZ is full featured evaluation board for the AD9286
- It features SPI interface for setup and control
- Support LVDS output mode option
- It has external or On board oscillator options
- It has balun/transformer or amplifier input drive options
- It provides switching power supply

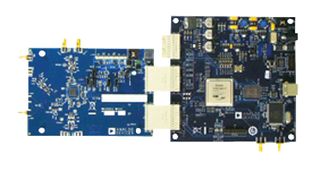

- VisualAnalog and SPI Controller software interfaces
