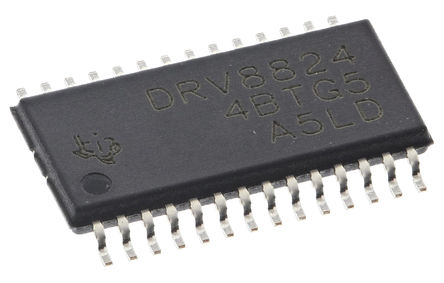

The DRV8824PWP is a 1.6A bipolar Stepper Motor Driver with on-chip 1/32 microstepping indexer provides an integrated motor driver solution for printers, scanners and other automated equipment applications. The device has two H-bridge drivers and a microstepping indexer and is intended to drive a bipolar stepper motor. The output driver block consists of N-channel power MOSFETs configured as full H-bridges to drive the motor windings. The DRV8824 is capable of driving up to 1.6A of current from each output (with proper heat sinking, at 24V and 25°C). A simple STEP/DIR interface allows easy interfacing to controller circuits. Mode pins allow for configuration of the motor in full-step up to 1/32-step modes. Decay mode is configurable so that slow decay, fast decay or mixed decay can be used. A low-power sleep mode is provided which shuts down internal circuitry to achieve very-low quiescent current draw. This sleep mode can be set using a dedicated nSLEEP pin.
