MSP430F6736IPZR -

Name: TEXAS INSTRUMENTS MSP430F6736IPZR
Brand: TEXAS INSTRUMENTS

微控制器, 16位, 混合信号, MSP430F6xx, 25 MHz, 128 KB, 8 KB, 100 引脚, LQFP

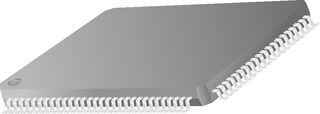

声明：图片仅供参考，请以实物为准！

制造商：: TEXAS INSTRUMENTS TEXAS INSTRUMENTS
制造商产品编号：: MSP430F6736IPZR
仓库库存编号：: 2148661
技术数据表：

订购热线： 400-900-3095 0755-21000796, QQ:800152669, Email:sales@szcwdz.com

由于产品数据库庞大，部分产品信息可能未能及时更新，下单前请与销售人员确认好实时在库数量，谢谢合作！

MSP430F6736IPZR产品概述

The MSP430F6736IPZR is a 16-bit ultra-low-power Mixed-signal Microcontroller features a powerful 16-bit RISC MSP430 CPU, 16-bit registers and constant generators that contribute to maximum code efficiency. The architecture combined with five low-power modes, is optimized to achieve extended battery life. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 3μs (typical). The device configurations with four 16-bit timer, 10-bit A/D converter, three-channel internal DMA, four enhanced universal serial communication interfaces, a 32-bit hardware multiplier and 72 general-purpose I/O pins. This device operates at a maximum frequency of 25MHz.

16-bit RISC architecture, extended memory, up to 25MHz system clock
Fully integrated LDO with programmable regulated core supply voltage
Supply voltage supervision, monitoring and brownout
FLL Control loop for frequency stabilization
Low-power low-frequency internal clock source (VLO)
Low-frequency trimmed internal reference source (REFO)
32kHz Crystals (XT1)
High-frequency crystals up to 32MHz (XT2)
One 16-bit timer with three Capture/Compare registers
Three 16-bit timers with two Capture/Compare registers each

Enhanced UART supports auto-baudrate detection
IrDA Encoder and decoder
Synchronous SPI
Password-protected RTC with crystal offset calibration and temperature compensation
Separate voltage supply for backup subsystem
Three 24-bit sigma-delta ADC with differential PGA inputs
10-bit ADC with internal shared reference, sample-and-hold and autoscan feature
Serial on-board programming, no external programming voltage needed
265μA/MHz Active mode (AM) power consumption

便携式器材, 测试与测量, 计量

MSP430F6736IPZR产品信息

邮箱：sales@szcwdz.com
Q Q：800152669
手机网站：m.szcwdz.com

MSP430F6736IPZR产地与重量

原产地：: Taiwan
进行最后一道重要生产流程所在的国家
RoHS 合规：: 是
税则号：: 85423190
重量（千克）：: .00027

美国1号品牌选型新加坡2号品牌选型

英国2号品牌选型英国10号品牌选型

日本5号品牌选型

架构	MSP430
位数	16位
CPU速度	25MHz
程序内存大小	128KB
存储器容量, RAM	8KB
针脚数	100引脚
MCU 封装类型	LQFP
输入/输出数	72输入
嵌入式接口类型	I2C, SPI, UART
电源电压最小值	1.8V
电源电压最大值	3.6V
封装	剪切带
产品范围	MSP430F6X Microcontrollers
MSL	MSL 3 - 168小时
