EVAL-ADM2682EEBZ -

制造商：

ANALOG DEVICES ANALOG DEVICES

制造商产品编号：

EVAL-ADM2682EEBZ

仓库库存编号：

2009273

技术数据表：

(EN)

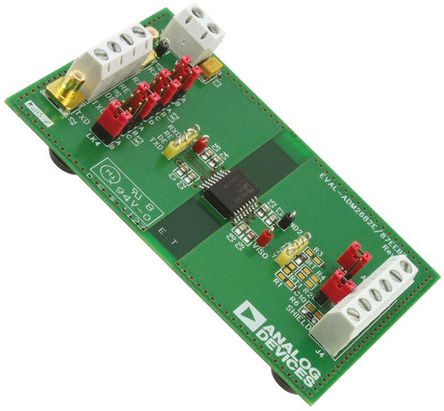

The EVAL-ADM2682EEBZ is an evaluation board for the ADM2682E . It operates at 16MBPS, 5kVrms signal and power isolated Rs485 transceivers with ±15kV ESD protection. The evaluation board is easily configured through jumper connections. The board can be used in half-duplex or full-duplex configurations and has a 120R termination resistor fitted on the receiver input. The evaluation board can be used with either the ADM2682E 16Mbps part or the ADM2687E 500kbps part. The driver and receiver are enabled and disabled by jumper connections. Test points are included on the power and signal lines on both sides of the isolation barrier. This board is designed to reduce emissions generated by the high frequency switching elements used by the isoPower technology to transfer power through its transformer.

• 5KVrms power and signal isolated Rs485/Rs422 transceiver
• Integrated with isolated dc to dc converter
• Configurable as half duplex or full duplex with Data rate of 16Mbps
• Easily configurable through jumper connections
• Test points for measuring all signals
• Layout optimised for emission
• Connect up to 256 nodes on one bus
• Open and short circuit, fail-safe receiver inputs
• High common mode transient immunity of >25kV/μs
• Convenient connections for power and signal through screw terminal blocks
