EVAL-ADM3051EBZ -

制造商：

ANALOG DEVICES ANALOG DEVICES

制造商产品编号：

EVAL-ADM3051EBZ

仓库库存编号：

2070655

技术数据表：

(EN)

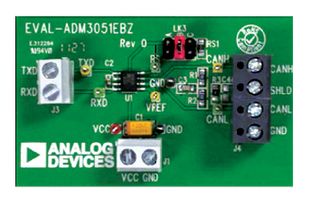

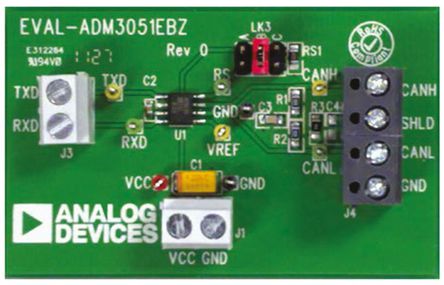

The EVAL-ADM3051EBZ is an evaluation board for ADM3051 device. The EVAL-ADM3051EBZ allows quick and easy evaluation of the ADM3051 CAN transceiver. The evaluation board allows all of the input and output functions to be exercised without the need for external components. Screw terminal blocks provide convenient connections for logic signals and power. The main device on the evaluation board, the ADM3051, is a controller area network physical layer transceiver, allowing a protocol layer CAN controller to access the physical layer bus. The ADM3051 complies with the ISO 11898 standard. It is capable of running at data rates of 1Mbps. For evaluation with a bus cable, a screw terminal block is provided to allow connection of CANH and CANL signals and connection of the cable shield.

• Easy evaluation of the ADM3051 controller area network (CAN) transceiver
• Convenient connections for power and logic signals through screw terminal blocks
• Screw terminal block for bus cable signals and shield
• Test points for measuring all signals
• Configure operating mode using jumper connection
• Slope control resistor of 47kR fitted by default
• Termination resistors (2 × 30R) with common mode filter
