EVAL-SDP-CB1Z -

制造商：

ANALOG DEVICES ANALOG DEVICES

制造商产品编号：

EVAL-SDP-CB1Z

仓库库存编号：

1897089

技术数据表：

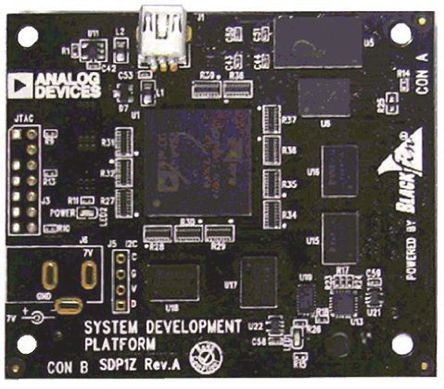

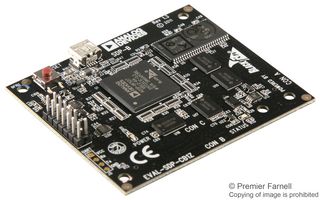

The EVAL-SDP-CB1Z is an SDP-B controller board. The SDP-B controller board is part of the Analog Device's system demonstration platform (SDP). The SDP-B is based on ADSP-BF527 blackfin processor, with the blackfin processor peripheral communication lines available to the component daughter board through two identical 120 pin small footprint connectors. The SDP consists of a series of controller boards, interposer boards, and daughter boards. SDP controller boards provide a means of communicating with the PC from the system under evaluation. Interposer boards route signals between two connectors. The SDP-B board is designed to be used in conjunction with various Analog Devices component evaluation boards and circuits from the lab reference circuits as part of a customer evaluation environment The SDP-B is used as part of the evaluation system for many Analog Device's components and reference circuits.

• It has Analog Devices ADSP-BF527 Blackfin processor
• Its core performance is up to 600MHz
• It has 5Mb of internal RAM memory
• It supports 32Mb flash memory, consist of Numonyx M29W320EB or Numonyx M25P32
• It supports 256Mb/32MB SDRAM memory, consist of Micron MT48LC16M16A2P-6A 16Mb x 16bits
• Peripherals exposed are SPI, SPORT, TWI/I2C, GPIO, PPI, Asynchronous parallel, Timers
