410-047-C2 -

制造商：

DIGILENT DIGILENT

制造商产品编号：

410-047-C2

仓库库存编号：

2061840

技术数据表：

(EN)

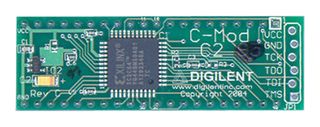

The 210-047-C2是一个C-Mod电路板 which combine a Xilinx CPLD, a JTAG编程port和power supply circuits in a convenient 600mil, 40引脚DIP封装. CMods are 理想的ly suited 用于breadboard or other 原型 circuit设计 where the use of small surface mount封装s is impractical. These were created to make the latest Xilinx CPLDs more practical 用于experimental和原型 circuits. They can plug directly in to breadboards or IC sockets和they can mate with the Diligent Ceres电路板 to utilize a collection of ready made I/O circuits. C-Mods are available with Cool Runner-II CPLDs (CMod C2), Cool Runner CPLDs (C-Mod XCR),和XC95 CPLDs (C-Mod 95). This电路板s are especially useful 用于investigating设计 across a variety of CPLD families. C-Mod电路板s, which measure just 0.7英寸by 2.16inch, allow设计ers to experiment with CPLD based设计 in a variety of state of the art设备.

• 一个单路3.3V电源电压 (需要时, C-Mod电路板提供稳压电源)
• 充足的旁路电容安装于所有CPLD供电电压引脚
• 所有可用的输入/输出信号均引导至DIP引脚
• 编程后CPLD设计为非易失性
• 可使用不同的CPLD系列设备轻松连接Cmods
• 所有C-Mod电路板兼容免费的Xilinx WebPack工具
