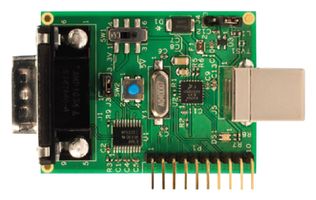

The EVBUSB2SER board is part of NXP's solutions for communication, and provides another way to connect your embedded system via USB. The evaluation board is a communication bridge between the USB and serial data, which can be any RS232/RS485 or TTL. The evaluation board supports baud rates from 300bps through 115200bps, 8 data bits, odd or even parity, 1 or 2 stop bits, software (xon/xoff) and hardware flow control.
- Single chip USB to RS232 UART data transfer
- Certified full speed USB 2.0 support
- 300bps to 115200bps UART with software Xon/Xoff and hardware flow control
- 2.7v to 5.5v voltage operation
- Available drivers for Windows 7, Windows Vista, Windows XP and Linux Kernel 2.6.34 and higher
