B2901A -

制造商：

KEYSIGHT TECHNOLOGIES KEYSIGHT TECHNOLOGIES

制造商产品编号：

B2901A

仓库库存编号：

2491328

技术数据表：

(EN)

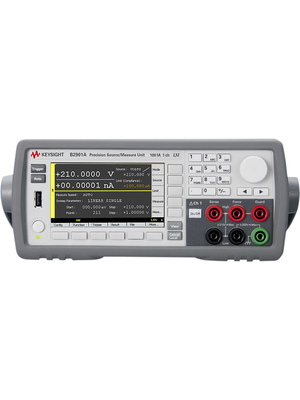

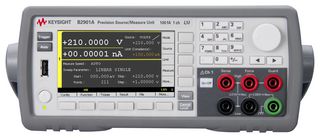

The Keysight B2901A Precision Source / Measure Unit (SMU) is a 1-channel, compact and cost-effective bench-top SMU with the capability to source and measure both voltage and current. It is versatile to perform I/V (current vs. voltage) measurement easily with high accuracy. Integration of 4 quadrant source and measurement capabilities enables I/V measurement simply and easily without configuring multiple instruments. The wide coverage of 210 V, 3 A DC/10.5 A pulse with a single instrument minimizes the investment. Minimum 100 fA/100 nV measurement resolution support accurate characterization of DUT. The superior 4.3'' color display and various view modes improve productivity for test, debug and characterization with intuitive operation.

• Supports one-channel configuration
• Minimum source resolution: 1pA /1μV, Minimum measurement resolution: 100fA/100nV
• Maximum output: 210V, 3ADC/10.5A pulse
• Arbitrary waveform generation and digitizing capabilities from 20μs interval
• Integrated 4-quadrant source and measurement capabilities
• The 4.3'' color display supports both graphical and numerical view modes
• Free application software to facilitate PC-based instrument control
• High throughput and SCPI command supporting conventional SMU command set
