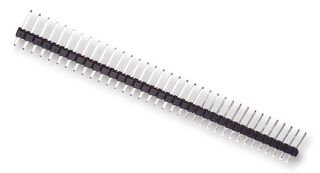

The 22-28-4360 is a 36-circuit 1-row KK? 254 Breakaway Vertical Header with tin-plated phosphor bronze contacts, 6.09mm mating pin and through hole termination. This 42375 series PCB header is made of high temperature thermoplastic, mates with KK? crimp housing 2695, 6471, 7880 and KK? PC board connector 4455, suitable for board-to-board, signal and wire-to-board applications. Housing has built-in polarization features and are available in UL94V-2 and UL94V-0 nylon.
- Black colour
- UL94V-0 Flammability rating
- 4A Current rating per contact
- 250V Voltage rating
车用, 消费电子产品, 通信与网络, 医用, 照明, 安全, 计算机和计算机周边
