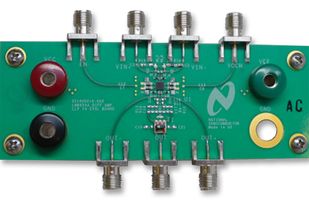

The LMH6554LE-EVAL/NOPB is an evaluation board for LMH6554, a high performance fully differential amplifier designed to provide the exceptional signal fidelity and wide large signal bandwidth necessary for driving 8bit to 16bit high speed data acquisition systems. Using proprietary differential current mode input stage architecture, the LMH6554 has unity gain, small signal bandwidth of 2.8GHz and allows operation at gains greater than unity without sacrificing response flatness, bandwidth, harmonic distortion, or output noise performance. The device's low impedance differential output is designed to drive ADC inputs and any intermediate filter stage. The LMH6554 delivers 16bit linearity up to 75MHz when driving 2V peak to peak into loads as low as 200R.
- Small signal bandwidth 2.8GHz
- 0.1dB gain flatness 830MHz
- 2VPP large signal bandwidth 1.8GHz
- Slew rate 6200V/μs
- Power 260mW
- Typical supply current 52mA
- 14 lead LLP package
