PCM5122EVM-U -

制造商：

TEXAS INSTRUMENTS TEXAS INSTRUMENTS

制造商产品编号：

PCM5122EVM-U

仓库库存编号：

2379244

技术数据表：

(EN)

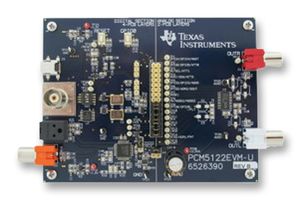

The PCM5122EVM-U is a complete evaluation kit for use with a personal computer running the Microsoft Windows operating system. This EVM can be used in conjunction with PurePath Studio to take advantage of the fixed function processing and mini DSP processing capabilities of PCM5122. The EVM is in form factor, which allows direct evaluation of the device performance and operating characteristics and eases software development and system prototyping. The EVM is operational with one mini USB cable connection to a PC. The USB connection provides power, control, and streaming audio data to the EVM for reduced setup and configuration. The EVM also allows external control signals and audio data for advanced operation, which allows prototyping and connection to the rest of the development or system. PurePath Studios enables customers to take full advantage of the fixed function audio processing and full mini DSP capabilities of the PCM5122.

• Register selectable audio processing functions (DRC, EQ, Filtering)
• Market leading low out of band noise
• Selectable digital filter latency and performance
• No dc blocking capacitors required
• Integrated negative charge pump
• Internal pop free control for sample rate changes or clock halts
• Intelligent muting system, soft up or down ramp and analog mute For 120dB mute SNR
• Mini USB connection to PC provides power, control, and streaming audio data for easy evaluation
• Connection points for external control and digital audio signals
• Provides rapid prototyping using Codec Control Graphical user interface or PurePath Studio
