EVAL-CFTL-LVDT -

制造商：

ANALOG DEVICES ANALOG DEVICES

制造商产品编号：

EVAL-CFTL-LVDT

仓库库存编号：

2334287

技术数据表：

(EN)

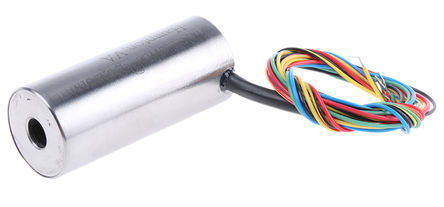

The EVAL-CFTL-LVDT is a E-100 Economy Series LVDT sensor. It is highly economical, satisfying numerous applications in which LVDT performance and reliability are desired, but where budgets are limited. With a linearity of just ±0.5% of full range (E 2000, ±1.0%), the E series is suitable for most applications with moderate operating temperature environments. Housed in magnetic stainless steel for protection against electromagnetic and electrostatic interference, the E series rugged construction is capable of resisting the shock and vibration of most industrial applications. Like in most of our LVDTs, the E series windings are vacuum impregnated with a specially formulated, high temperature, flexible resin and the coil assembly is potted inside its housing with a two component epoxy. This provides excellent protection against hostile environments such as high humidity, vibration and shock.

• Customary LVDT performance
• AISI 400 series stainless steel case
• Imperial or metric core
• General industrial
• Moderate operating temperature environments
• Cost sensitive
• Stroke ranges from ± 0.1inch to ±2inch
• Magnetically shielded case
• AC operation, 50Hz to 10KHz
• Economical
