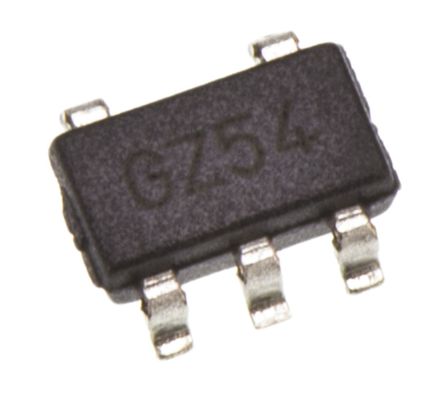

The MCP1402T-E/OT is a high-speed MOSFET Driver capable of providing 500mA of peak current. The inverting or non-inverting single channel output is directly controlled from either TTL or CMOS (3 to 18V). These devices also feature low shoot-through current, Matched rise and fall times and propagation delays which make them ideal for high switching frequency applications. The MCP1402 device operates from a single 4.5 to 18V power supply and can easily charge and discharge 470pF gate capacitance in under 19ns (typical). It provides low enough impedances in both the On and Off states to ensure the MOSFET's intended state will not be affected, even by large transients. This device is highly latch-up resistant under any conditions within their power and voltage ratings. They are not subject to damage when up to 5V of noise spiking (of either polarity) occurs on the ground pin.
Low shoot-through/cross-conduction current in output stage
High capacitive load drive capability - 1000pF in 34ns (typical)
Matched, short 35ns delay times (typical)
Matched, fast rise and fall times (under 20ns, typical)
Low output impedance, less than 12R (typical)
Low supply current consumption
850μA (typical) with 3V logic input
100μA Typical with 0V logic input
Robust design
Latch-up protected can withstand up to 500mA reverse current
Logic input will withstand up to 5V negative swings
