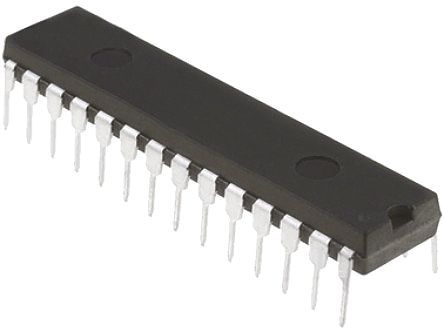

PIC16F1718-I/SP -

制造商：

MICROCHIP MICROCHIP

制造商产品编号：

PIC16F1718-I/SP

仓库库存编号：

2449085

技术数据表：

(EN)

The PIC16F1718-I/SP is a 8-bit intelligent analogue Flash Microcontroller combines analogue integration with extreme low power (XLP) to suit a variety of general purpose applications. This microcontroller delivers on-chip operational amplifier, core independent peripherals (CLC, COG, NCO and zero cross detect) and peripheral pin select, providing for increased design flexibility. This family of device contains an enhanced mid-range 8-bit CPU core. The CPU has 49 instructions. Interrupt capability includes automatic context saving. The hardware stack is 16 levels deep and has overflow and underflow reset capability. The microcontroller with direct, indirect and relative addressing modes. Two file select registers (FSRs) provides the ability to read program and data memory.

• 28kB Flash program memory
• 2kB Data SRAM
• High endurance flash memory (HEF)
• 128B of Non-volatile data storage
• 25 I/O pins
• Four 8-bit timers/one 16-bit timer
• 2 x High-speed comparators
• 2 x Operational amplifier
• 17-channel x 10-bit ADC
• One 8-bit DAC and one 5-bit DAC

• Zero cross detect
• 2 x CCP/2 x PWM
• 1 x COG
• 1 x EUSART
• 1 x I2C/SPI
• 4 x CLC
• 1 x NCO
• Interrupt capability
• Power-on reset (POR)
• Power-up timer (PWRT)
