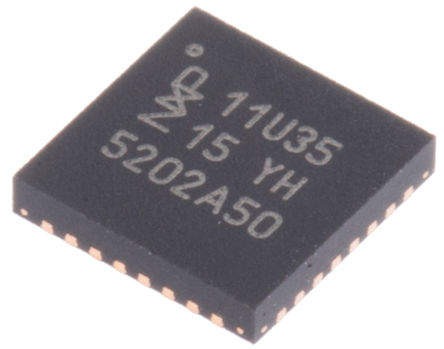

The LPC11U35FHI33/501 is a 64kB flash 12kB SRAM Cortex-M0 Microcontroller Unit based designed for 8/16-bit microcontroller applications, offering performance, low power, simple instruction set and memory addressing together with reduced code size compared to existing 8/16-bit architectures. The microcontroller operates at CPU frequencies of up to 50MHz. Equipped with a highly flexible and configurable full speed USB 2.0 device controller, it brings unparalleled design flexibility and seamless integration.
- ARM Cortex-M0 built-in nested vectored interrupt controller
- Serial wire debug
- System tick timer
- High current output driver on one pin
- Programmable windowed watchdog timer
- USART with fractional baud rate generation
- Integrated PMU (power management unit)
- Power profiles residing in boot ROM provide optimized performance
- Brownout detect with four separate thresholds for interrupt and forced reset
