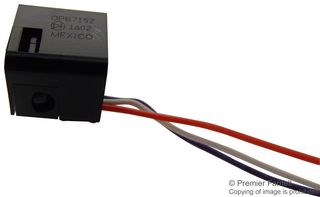

The OPB715Z series Reflective Assembly consists of a GaALAs LED and a Photologic? sensor enclosed in an IR transmissive housing. The sensor is characterized to detect paper at 0.5" (12.7mm). The sensor has a wide operating distance range and is capable of detecting reflective objects at other distances. The reflective distance depends on the reflectance materials. These devices are designed to replace conventional mechanical limit switches where long life and reliability are critical. The switches are designed to easily snap mount into a 0.036inch (0.914mm) 20 gage thick material with a rectangular opening of 0.315" x 0.472" (8.0mm x 12.0mm). The sensor's panel-mount plastic housing shields stray light and is terminated with 18" (457mm) UL approved 26 AWG wire leads. The LED is current limited internally for design convenience. Inverted output options are available for either output configuration.
