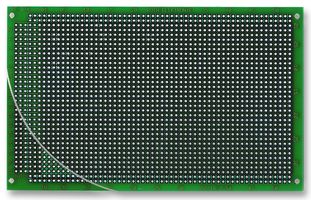

The RE334-LF is a 100 x 160mm Eurocard dual inline Prototyping Board, made of 1.5mm fibreglass FR4 and 35μm Cu single-sided construction with component print and soldering stop mask surface. This hot air levelling prototyping board comes with 32/64/96-channel DIN 41612 type C connector. The component side is totally laminated by copper, no conducting connection to the component side by etched free holes. If the copper coating is grounded, the electrical components are optimally shielded against the solder side. This board used to built-up HF, digital and analogue circuits with high reliability.
