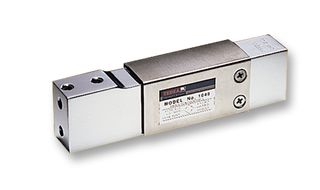

1040M-50M-F -

制造商：

TEDEA HUNTLEIGH TEDEA HUNTLEIGH

制造商产品编号：

1040M-50M-F

仓库库存编号：

7000911

技术数据表：

(EN)

The 1040M-50M-F from Vishay is a low capacity single point aluminium load cell. This low profile single point load cell is designed for direct mounting of low cost weighing platforms. Its small physical size combined with high accuracy and low cost makes these load cells ideally suited for retail, bench and counting scales. An optional special humidity resistant protective coating assures long term stability over the entire compensated temperature range. The two additional sense wires feedback the voltage reaching the load cell. Complete compensation of change in lead resistance due to temperature change or cable extension is achieved by feeding this feedback voltage.

• Load capacity is 50kg
• Available with metric and UNC threads
• Single point 400mm x 400mm platform
• IP65 protection standard
• OIML R60 and NTEP approved
• EEx ia IIC T4 - ATEX hazardous area approvals are also available
• FM approval available
• Operating temperature range from -20°C to 70°C
• Input Impedance is 415ohm
• Rated output of 2.0mV/V
