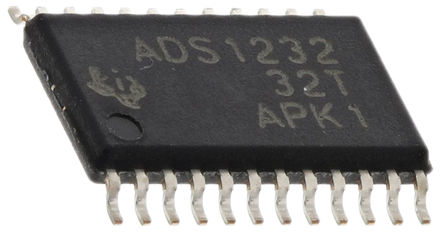

ADS1232IPW -

制造商：

TEXAS INSTRUMENTS TEXAS INSTRUMENTS

制造商产品编号：

ADS1232IPW

仓库库存编号：

2323232

技术数据表：

(EN)

The ADS1232IPW is a 24-bit precision Analog-to-digital Converter (ADC) with an on board, low-noise programmable gain amplifier (PGA), precision delta-sigma ADC and internal oscillator. The ADC provides a complete front-end solution for bridge sensor applications. The delta-sigma ADC has 23.5-bit effective resolution and is comprised of a 3rd-order modulator and 4th-order digital filter. The ADC can be clocked externally using an oscillator or a crystal. There is also an internal oscillator available that requires no external components. Offset calibration is performed on-demand and the ADC can be put in a low-power standby mode or shut off completely in power-down mode. All of the features of the ADC are operated through simple pin-driven control. There are no digital registers to program in order to simplify software development. Data are output over an easily-isolated serial interface that connects directly to the MSP430 and other microcontrollers.

• Input multiplexer accepts two differential inputs
• Flexible clocking - Low-drift on board oscillator optional external crystal
• Easy ratiometric measurements - external voltage reference up to 5V
• Selectable 10/80SPS data rates
• 2-channel differential input with built-in temperature sensor
• Simple serial digital interface
• Green product and no Sb/Br
